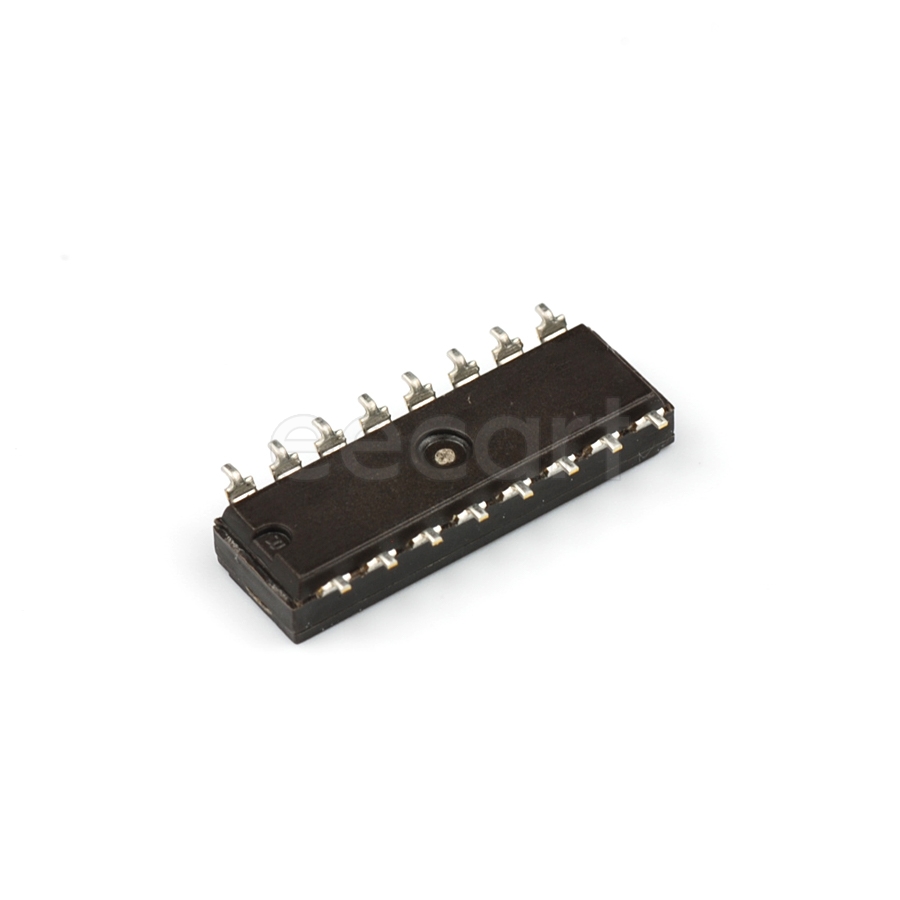

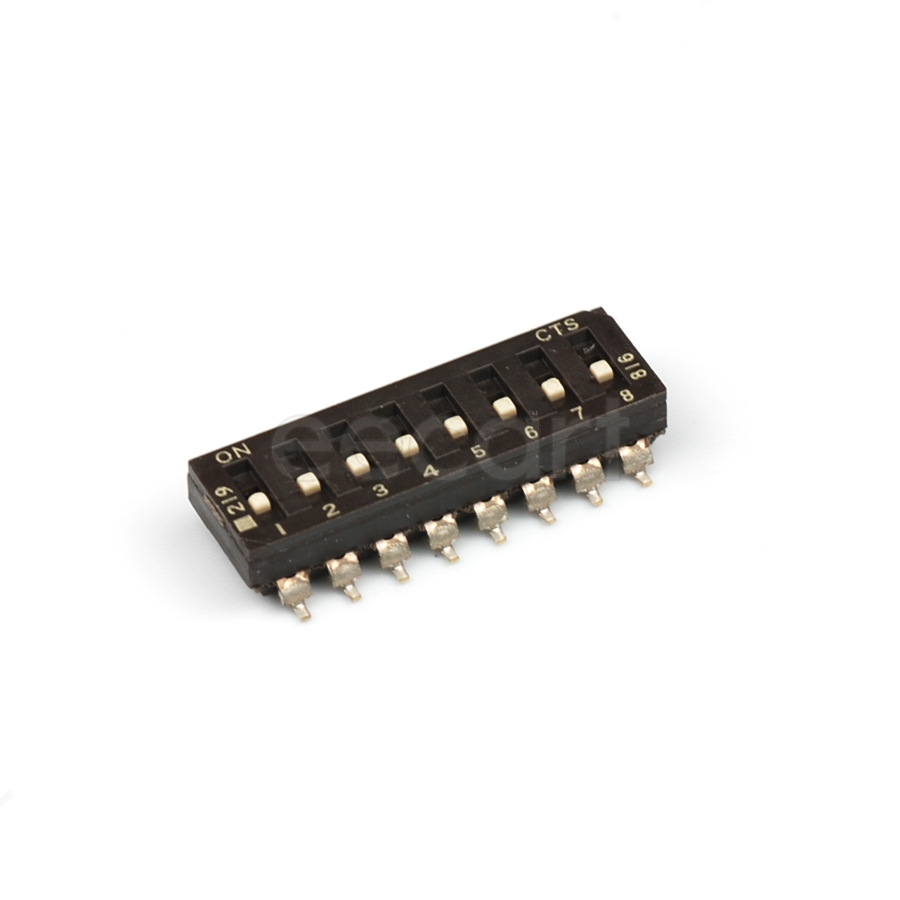

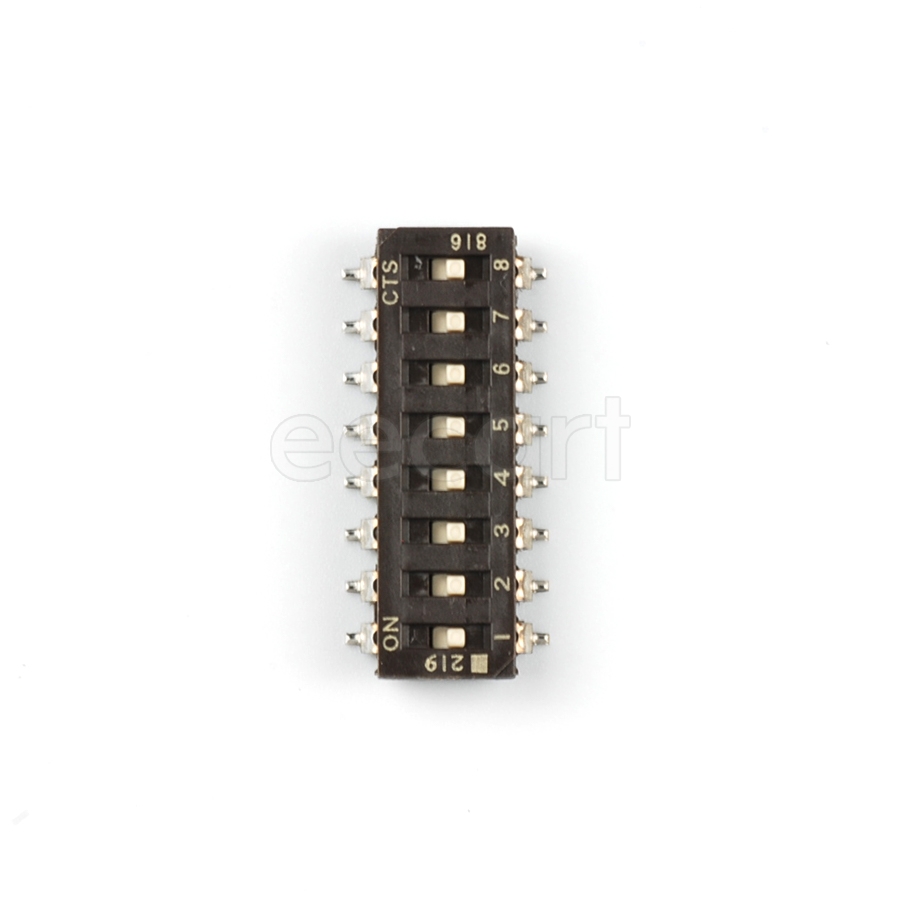

219-8MSTR
Manufacturer:
CTS Corporation
Mfr.Part #:
219-8MSTR
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:8 Current Rating:100 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 21.7932 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 4.58 mm |
| Circuit Type | SPST |
| Depth | 9.91 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Beryllium Copper |
| Pitch | 2.54 mm |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 20 V |
| Number of Circuits | 8 |
| Orientation | Straight |
| Throw Configuration | SPST |
| Number of Positions | 8 |
| Contact Resistance | 25 mΩ |
| Electrical Life | 2 kcycles |
| Mechanical Life | 2 kcycles |
| Contact Current Rating | 100 mA |
| Actuator Type | Slide |
| Washable | Yes |
| Life (Cycles) | 2 kCycles |
| Terminal Pitch | 2.54 mm |
| Packaging | Reel |
Stock: 3535
Distributors
pcbx
pcbxUnit Price$0.71985
Ext.Price$0.71985
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71985 | $0.71985 |
| 10 | $0.61042 | $6.10420 |
| 25 | $0.56853 | $14.21325 |
| 50 | $0.54674 | $27.33700 |
| 100 | $0.52578 | $52.57800 |
| 300 | $0.49222 | $147.66600 |
| 500 | $0.46080 | $230.40000 |
| 1000 | $0.44798 | $447.98000 |
| 3000 | $0.42291 | $1268.73000 |
| 5000 | $0.39925 | $1996.25000 |
